Two-cell Zero-Point Positioner

Two-cell Zero-Point Positioner

PDF下载
立即咨询
  • Two-cell Zero-Point Positioner
产品规格
MODEL NO 长 宽 高 KG 2D 3D
ZPCS-73505228
ZPCS-73505228

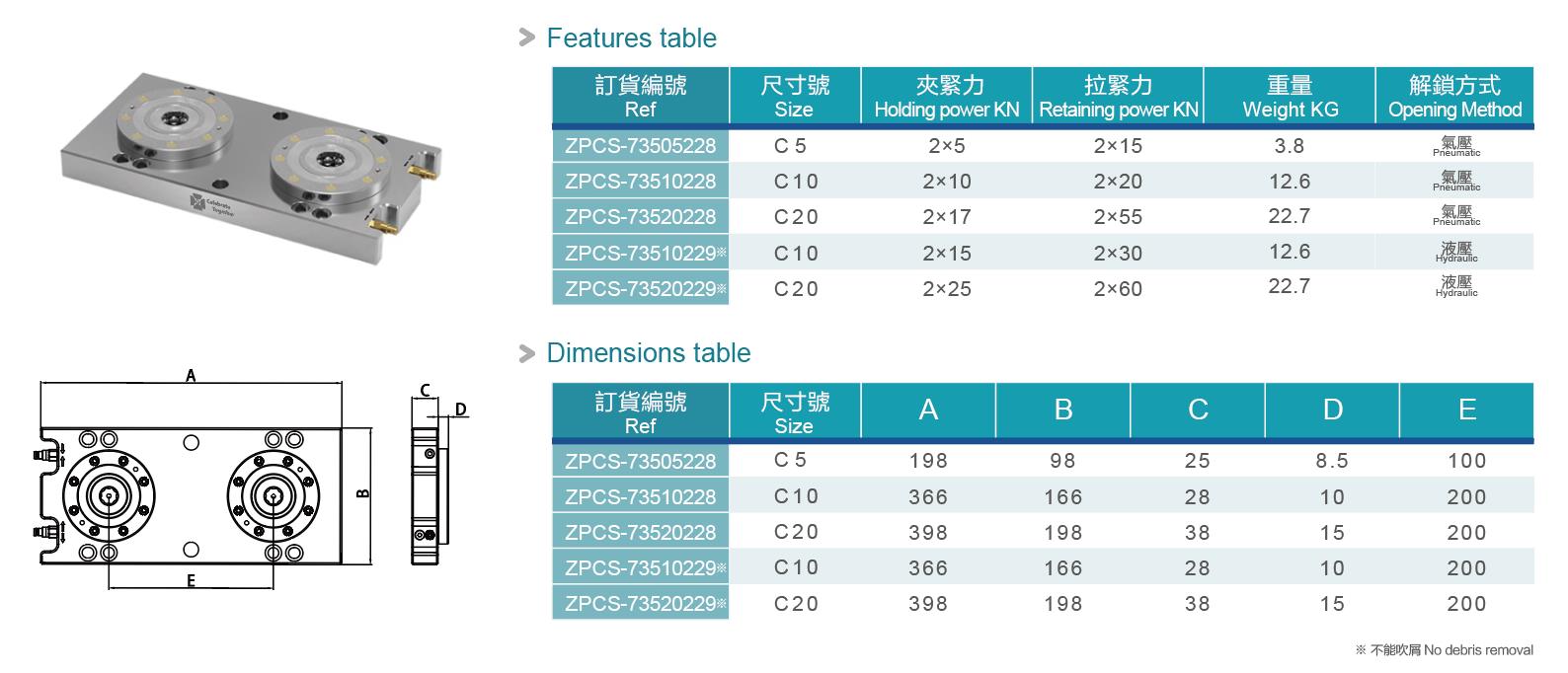

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73505228

C5

2x5

2x15

3.8

Air pressure

pneumatic


Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73505228

C5

198

98

25

8.5

100




 198 98 33.5 3.8 download download
ZPCS-73510228
ZPCS-73510228

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73510228

C10

2x10

2x20

12.6

Air pressure

pneumatic


Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73510228

C10

366

166

28

10

200




 366 166 38 12.6 download download
ZPCS-73520228
ZPCS-73520228

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73520228

C20

2x17

2x55

22.7

Air pressure

pneumatic


Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73510228

C20

398

198

38

15

200




 398 198 53 22.7 download download
ZPCS-73510229*
ZPCS-73510229*

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73510229*

C10

2x15

2x30

12.6

Hydraulic

Hydraulic


Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73510229*

C10

366

166

28

10

200




 366 166 38 12.6 download download
ZPCS-73520229*
ZPCS-73520229*

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73520229*

C20

2x25

2x60

22.7

Hydraulic

Hydraulic


Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73520229*

C20

398

198

38

15

200




 398 198 53 22.7 download download
产品概述


Material


Pneumatic/hydraulic unlocking

Die steel (or the customer's choice)

Die steel (or the customer's choice)

The repeat positioning accuracy is ≤0.005mm




Explanation


It is locked onto the T-slot through the countersunk holes on the substrate, and the installation is simple.


There are at least two positioning holes for accurate positioning
