产品规格

MODEL NO

长

宽

高

KG

2D

3D

ZPCS-73510628

ZPCS-73510628

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73510628

C10

6x10

6x25

40.5

Air pressure

pneumatic

Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73505428

C10

570

370

32

10

200

570

370

42

40.5

ZPCS-7351062D

ZPCS-7351062D

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73520628

C20

6x17

6x55

70

Air pressure

pneumatic

Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73520628

C20

598

398

38

15

200

570

370

62

63.9

ZPCS-73510629*

ZPCS-73510629*

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73510629*

C10

6x15

6x30

40.5

Hydraulic

Hydraulic

Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73510629*

C10

570

370

28

10

200

570

370

38

40.5

ZPCS-73520629*

ZPCS-73520629*

Features table

Order number

Ref

Size number

Size

Clamping force

Holding power KN

Tensioning force

Retaining power KN

Weight

Weight kG

Unlocking method

Opening Vethod

ZPCS-73520629*

C20

6x25

6x60

70

Hydraulic

Hydraulic

Dimensions table

Order number

Ref

Size number

Size

A

B

C

D

E

ZPCS-73520629*

C20

598

398

38

15

200

598

398

53

70

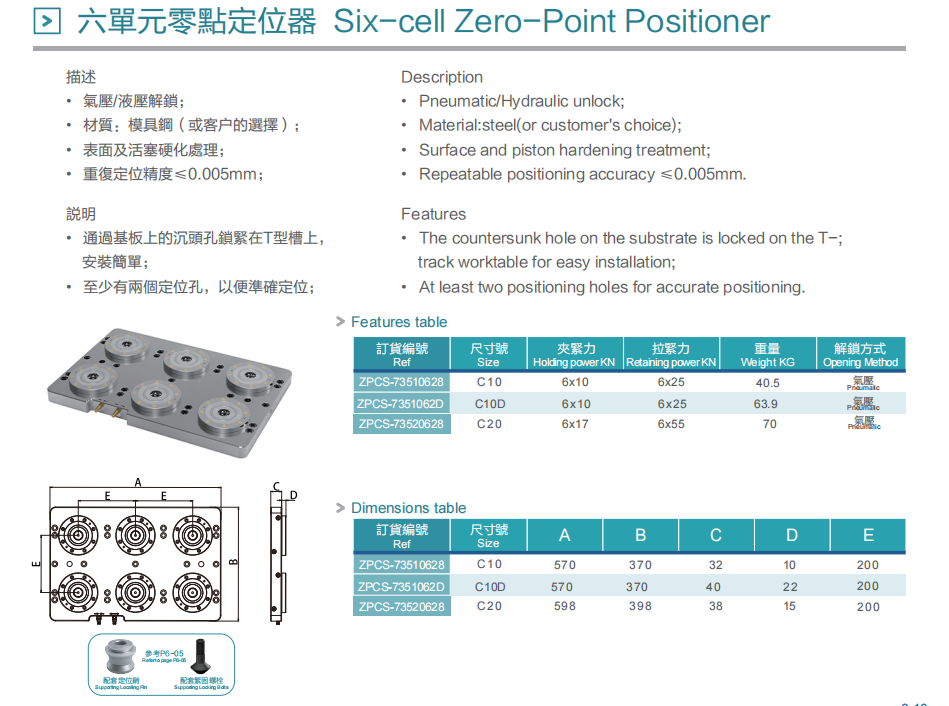

产品概述

		Material
Pneumatic/hydraulic unlocking	Surface and piston hardening treatment	Die steel (or the customer's choice)	The repeat positioning accuracy is ≤0.005mm
