| MODEL NO |
长 |
宽 |
高 |
KG |
2D |
3D |
CN-1B1-5300-0

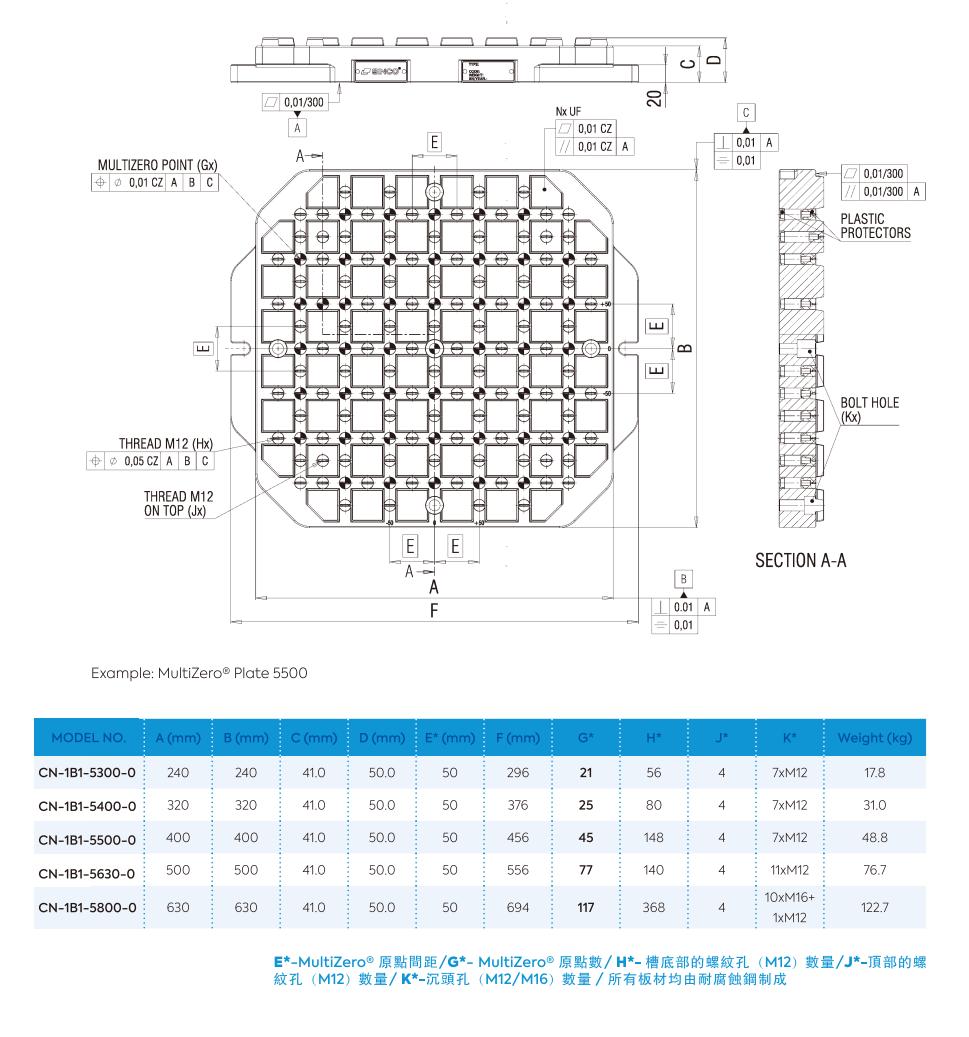

| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5300-0 | 240 | 240 | 41.0 | 50.0 | 50 | 296 | 21 | 56 | 4 | 7xM12 | 17.8 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
296 |
240 |
50 |
17.8 |
download
|
download
|
CN-1B1-5400-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5400-0 | 320 | 320 | 41.0 | 50.0 | 50 | 376 | 25 | 80 | 4 | 7xM12 | 31.0 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
376 |
320 |
50 |
31.0 |
download
|
download
|
CN-1B1-5500-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5500-0 | 400 | 400 | 41.0 | 50.0 | 50 | 456 | 45 | 148 | 4 | 7xM12 | 48.8 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
456 |
400 |
50 |
48.8 |
download
|
download
|
CN-1B1-5630-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5630-0 | 500 | 500 | 41.0 | 50.0 | 50 | 556 | 77 | 140 | 4 | 11xM12 | 76.7 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
556 |
500 |
50 |
76.7 |
download
|
download
|
CN-1B1-5800-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5800-0 | 630 | 630 | 41.0 | 50.0 | 50 | 694 | 117 | 368 | 4 | 10xM16+ 1xM12 | 122.7 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
694 |
630 |
50 |
122.7 |
download
|
download
|
