| MODEL NO |
长 |
宽 |
高 |
KG |
2D |
3D |
CN-1B1-5310-0

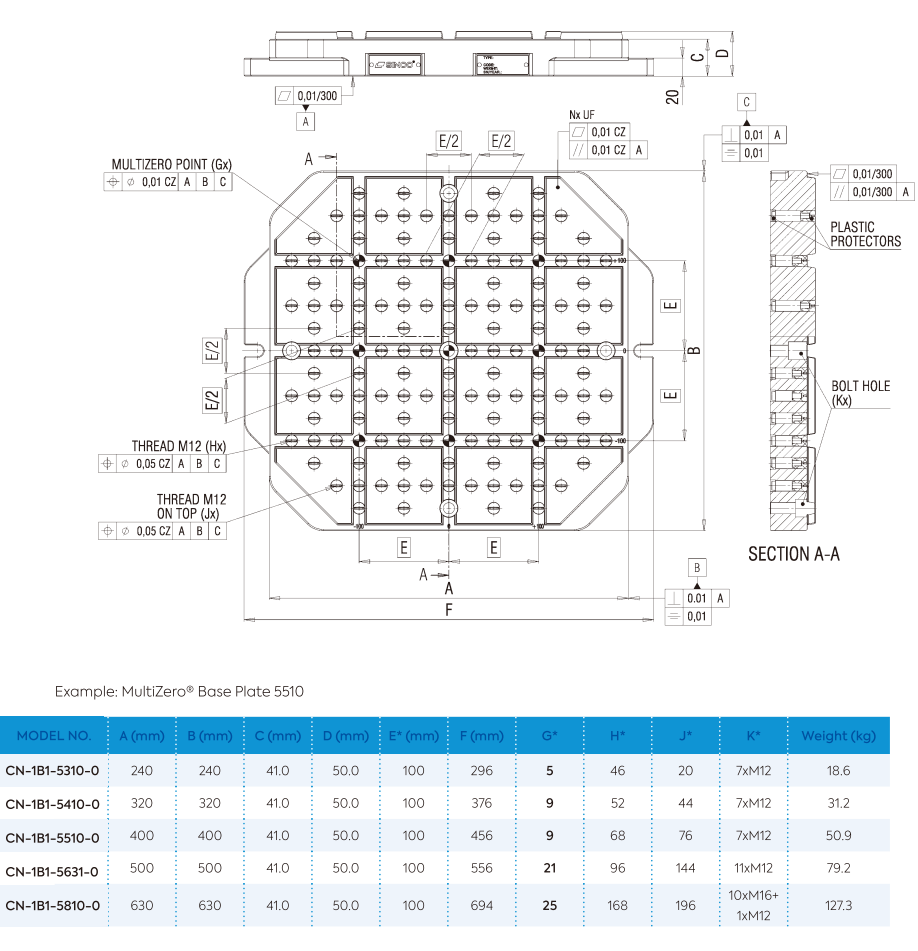

| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5310-0 | 240 | 240 | 41.0 | 50.0 | 100 | 296 | 5 | 46 | 20 | 7xM12 | 18.6 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
296 |
240 |
50.0 |
18.6 |
download
|
download
|
CN-1B1-5410-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5410-0 | 320 | 320 | 41.0 | 50.0 | 100 | 376 | 9 | 52 | 44 | 7xM12 | 31.2 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
376 |
320 |
50.0 |
31.2 |
download
|
download
|
CN-1B1-5510-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5510-0 | 400 | 400 | 41.0 | 50.0 | 100 | 456 | 9 | 68 | 76 | 7xM12 | 50.9 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
456 |
400 |
50.0 |
50.9 |
download
|
download
|
CN-1B1-5631-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5631-0 | 500 | 500 | 41.0 | 50.0 | 100 | 556 | 21 | 96 | 144 | 11xM12 | 79.2 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
556 |
500 |
50.0 |
79.2 |
download
|
download
|
CN-1B1-5810-0
| MODEL NO. | A (mm) | B (mm) | C (mm) | D (mm) | E* (mm) | F (mm) | G* | H* | J* | K* | Weight(kg) | | CN-1B1-5810-0 | 630 | 630 | 41.0 | 50.0 | 100 | 694 | 25 | 168 | 196 | 64..4. 10xM16+ 1xM12 | 127.3 |
E*-Multizero® 原點開距/G*- Multizero® 原點數/H*-槽底部的螺紋孔(M12)数量/J*-頂部的螺 紋孔(M12)数量/K*-沉頭孔(M12/M16)数量/所有板材均由耐腐制成
|
694 |
630 |
50.0 |
127.3 |
download
|
download
|
